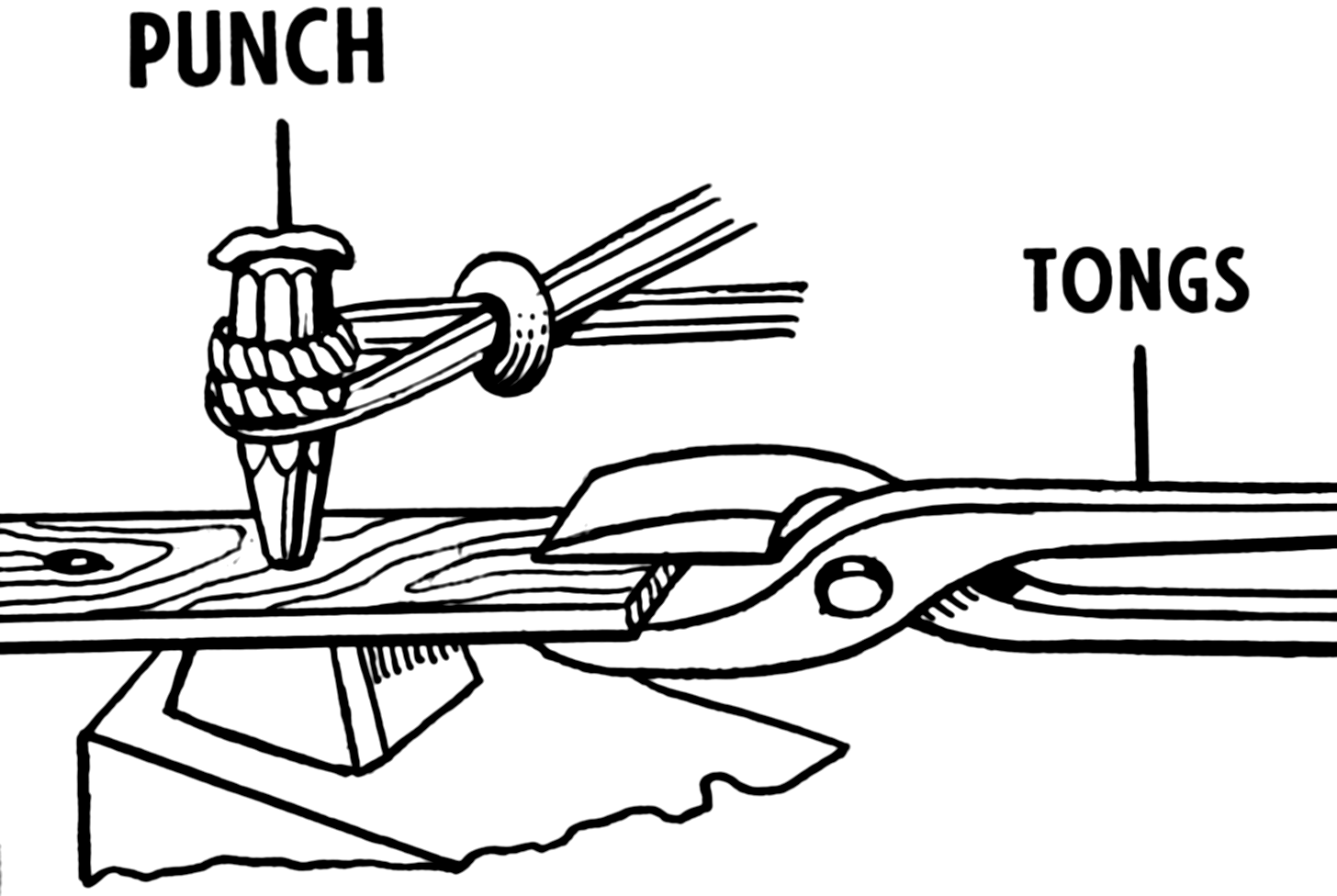

Dimensions of a Punch - Dimensions Guide

The dimensions of a punch tool differ, depending on how it will be utilized. It isn’t uncommon to find some that are a foot or foot and half long. Others may be longer.

Characteristics

The tool is made up of a metal rod that has a blunt end on one and a sharp point on the other. The end is hit by a hammer. These tools are utilized in various applications. For example, the tool can be used to drive in nails and other objects. The tool can be used to make an impression on the workpiece tip.

Nail Punch

This tool is used for driving in nail heads under a surface. This tool is also known as a nail set. The tool is akin to the pin punch. It is utilized for driving in pins for fastening a fixture on a rotating shaft.

Both of these tools come with a body where the tool is maintained. The tool also has a flat cylindrical portion with a flat end. The diameter will depend on the material it will drive at.

What is the Center Punch?

This utility notes a point’s center. It is utilized for marking the hole center when making holes. No matter what the dimensions of a punch tool is, it will wander if not commenced in a recess. The tool will make a dimple big enough to direct the drill tip bit.

If the hole being drilled is large and the web drill bigger than the punch indentation, pilot hole drilling is required. There are also automated center punches available. They can be used without a hammer.

Transfer Punch

This is a punch of a precise outer diameter that goes to the tool’s length. It is not tapered. It is designed for fitting hole tolerances. If hit, the hole center will be relayed to another one. It means the tool can be utilized for copying patterns.

Facts about the Prick Punch

This is a lot like the center punch. However, the tool is used only for marking. The tip is angled and sharp. This allows the tool to produce deeper and narrower points. This can be enlarged via the center punch.

The dimensions of a punch tool are just some of the things that you have to assess. Before you decide to get one, you need to understand the many types available. It is the only way to ascertain that the right utility is applied for the task.
