Dimensions of a Bulldozers

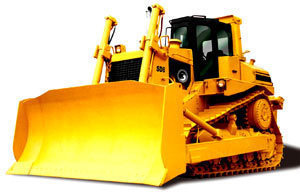

A bulldozer is a powerful machine used for moving rocks and earth. The bulldozer is also used for grading and flattening land.

Caterpillar Crawler Bulldozer Dimensions: Models D10R, D10R and D11R CD

Model D10R has an operating weight of 129,773 lbs and 580 net power. It has the Std track frame configuration and a semi-u blade. The blade is 15' 11" wide and has a capacity of 24.2 cubic yards.

Model D10R has a blade capacity of 24.2 cubic yards and equipped with a 15' 11" wide blade. The blade is semi-u and has the Std track frame configuration. The net power is 580 and the operating weight is 129,773 lbs.

Model D11R CD comes with an operating weight of 218,715 lbs. The track frame configuration is Std and the net power is 850. It has the carry over / push blade. The blade is 22' 0" wide and has a capacity of 57.0 cubic yards.

Caterpillar Crawler Bulldozer Dimensions: Models D4G XL, D5G LGP and D5G XL

Model D4G XL’s operating weight is 17,196 lbs. The net power is 80 and it has the LT track frame configuration. The D4G XL has the 7-way (PAT) blade, which is 8' 9.2" wide. The capacity is 2.51 cubic yards. The D5G LGP also has the 7-way (PAT) dozer blade. It is 10' 8.1" wide and has a capacity of 3.06 cubic yards. The track frame configuration is LGP. The net power is 90 and the operating weight is 20,402 lbs.

The D5G XL has an operating weight of 19,630 lbs. The track frame configuration is LT and the net power is 90. The dozer has the 7-way (PAT) blade with its 2.86 cubic yard capacity. The blade is 8' 9.9" wide.

The D6N DS-XL and D6N FTC-LGP

The D6N DS-XL has an operating weight of 35,688 lbs. It comes with a net power of 145 and 10' 9" wide blade. The capacity is 4.16 cubic yards. The D6N FTC-LGP has a blade capacity of 4.13 cubic yards.The blade is of the 7-way (VPAT) variety and is 13' 4.6" wide. The bulldozer has an LGP track frame configuration and 145 net power. The operating weight is 37,968 lbs.

The bulldozer dimensions and specifications are subject to change. Before you buy any of these units, you should talk with the local dealer. They will be able to give you more detailed information about each vehicle.
