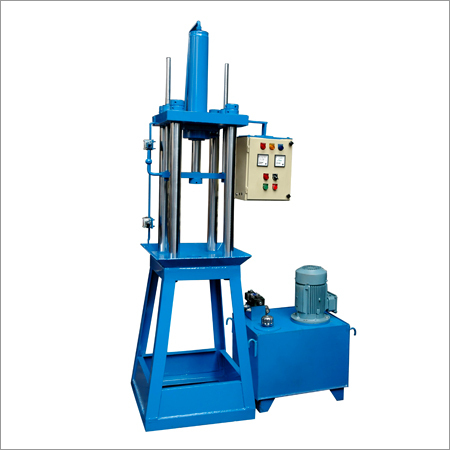

Broaching Machine Dimensions

Broaching machines or broaches refer to equipment used to remove assorted materials. There are many types and their shapes are determined by the operation being performed. The specs below are for the Hassay Savage Company broaches.

Broaching Machine Dimensions: Hexagonal Broaches

Item 12104 has a hex diameter of 4 mm with a pilot diameter of 1575" and a drill size of 4.0". The broach length is 5 1/2". Item 12105 has a hex size of 5 mm and pilot diameter of 1968". The drill size is 5.0" and the broach length is 6".

Item 12106 has a 6 mm hex size and a pilot diameter of .2362". The drill size is 6.0" and the broach length is 6 1/2". Item 12107 has a hex size of 7 mm and a pilot diameter of .2756". The drill size is 7.0" and the broach length is 7.0".

Item 12114 has a hex size of 14 mm and pilot diameter of .5512". The broach length is 14 1/4" and the drill size is 14.0".

Broaching Machine Dimensions: Keyseating Broaches

Item 11701 has a body width of 3/16" and body height of 3/8". The body length is 16". Item 11703 has a 3/16" body width and a body height of 1/2". The body length is 16".

Item 11705 has a body width of 5 mm and a height of 3/4", with the body length at 16". Item 11709 has a body width of 8 mm and a body height of 7/8". The body length is 16". Item 11712 has a body width of 12 mm, a body height of 1" and a body length of 20". Item 11714 has a body width of 16 mm, a body height of 1" and a body length of 20".

Broaching Machine Dimensions: Pull Type Broaches

Item 33501 has a nominal diameter of 1/16" and decimal diameter of .0635". The minimum hole size is 3/8". Item 33503 has a nominal diameter of 3/32" and a decimal diameter of 0948". The minimum hole size is 5/8".

Item 33505 has a nominal diameter of 1/8" and a decimal diameter of .126". The minimum hole size is 7/8". The nominal diameter of item 33507 is 5/32" and the decimal diameter is .1572". The minimum hole size is 23/32". Item 33509’s nominal and decimal diameters are 3/16" and .1885". The minimum hole size is 15/16".

Broaching Machine Dimensions: Standard Inch Square

Item 13008 has a pilot diameter of 1280" and a drill size of #30. The broach length is 4 5/8". Item 13014 has a pilot diameter of .2275" and #1 drill size. The broach length is 6 7/8". Item 13016 has a pilot diameter of .2651" and a drill size of 17/64". The broach length is 7".

The pilot diameter for item 13018 is .2964" and the drill size is 19/64". The broach length is 7 1/4". Item 13022 has a pilot diameter of .3589" and 23/64" drill size. The broach length is 3/8".

The broaching machine dimensions specified are just for these broach variants. Other types of broaches will have different specifications.
